Max. Feeding Size : 28-32.7m
Capacity : 1-200tph
Material handling: Mud Coal Coke Coal Dust Coal Furnace Slag Furnace Slag River Gravel
Email: market@sinoftm.com
Fote bucket elevator enjoys the features of large working capacity, stable performance and long service life, etc. It is suitable for conveying powders, particles or briquettes like coal, cement, sand, clay and ore, etc. Since the pulling mechanism is loop chain, hot materials are allowed.

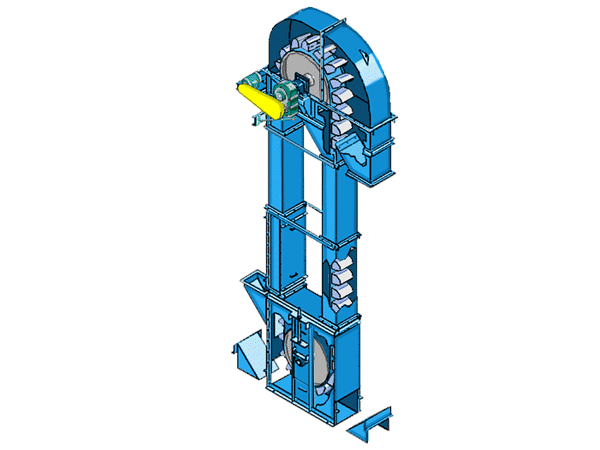

Working Schematic Diagram Of Bucket Elevator
1: No material return, low driving power
2: Wide application range, less demand toward the kinds and features of material, good sealing performance
3: Reliable operation, service life for more than 20,000 hours
4: Automatic feeding, small wear
Technical parameters of ring chain bucket elevator
| Specification | Max.lifting Height (m) |
Conveying Capacity (m³/h) |
| TH160 | 25 | 7-12 |
| TH200 | 28 | 8-15 |
| TH250 | 30 | 10-25 |
| TH300 | 30 | 25-35 |
| TH315 | 40 | 30-40 |
| TH400 | 40 | 45-60 |
| TH500 | 40 | 65-80 |
| TH630 | 40 | 100-120 |
| TH800 | 40 | 130-150 |
Technical parameters of wire belt bucket elevator
| Specification | Max. lifting Height (m) |
Convrying Capacity (m³/h) |
| TDG160 | 80 | 34 |
| TDG200 | 80 | 45 |
| TDG250 | 80 | 71 |
| TDG315 | 80 | 101 |
| TDG400 | 80 | 158 |
| TDG500 | 80 | 218 |
| TDG630 | 80 | 345 |
| TDG800 | 80 | 491 |

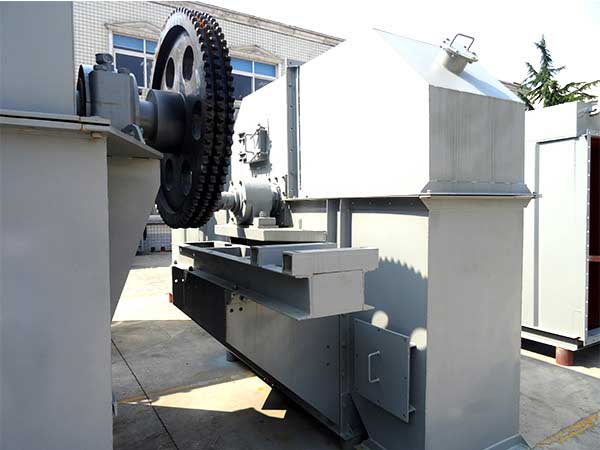

Plate chain bucket elevator
| Specification | Max.lifting Height (m) |
Max. lifting Capacity (m³/h) |
| NE15 | 40 | 16 |
| NE30 | 59 | 31 |
| NE50 | 62 | 60 |
| NE100 | 58 | 110 |
| NE150 | 65 | 170 |
| NE200 | 73 | 220 |
| NE300 | 61 | 320 |
| NE400 | 47 | 420 |
| NE500 | 58 | 500 |
