Max. Feeding Size : 125-1200mm
Capacity : 5-2200tph
Material handling: Limestone Quartz Coal Refuse Granite River Gravel
Email: market@sinoftm.com
In mining industry, jaw industry is often used for coarse crushing and secondary crushing. Sometimes, small crusher or mini crusher machine plays the role of tertiary crushing in small-sized mines. The maximun compressive strength of raw material tends to be 320MPA.

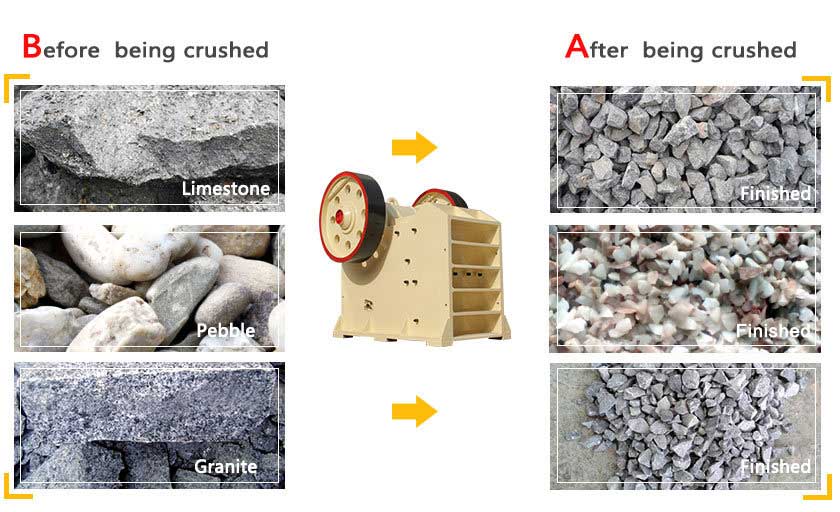

Stone before being crushed and after being crushed by Fote jaw crusher

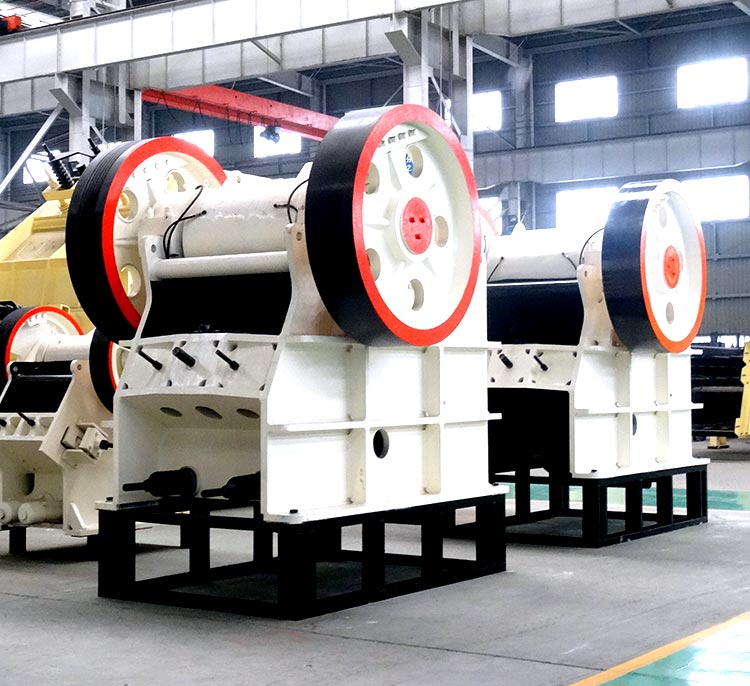

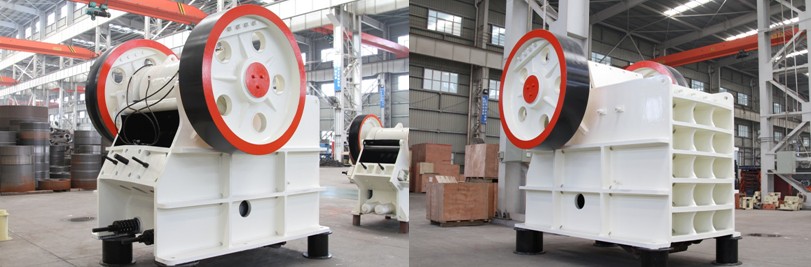

PE Series Jaw Crusher
Stable Welded Fixed Steel Structure
Vibration-Reducing Unique Flywheel Design
Convenient Adjustable Outlet.
Deep Chamber Crushing, Energy-Saving
Big Crushing Force
Large Crushing Ratio
Easy maintenance
Low Fault Rate
More Stable Structure
Big Crushing Force

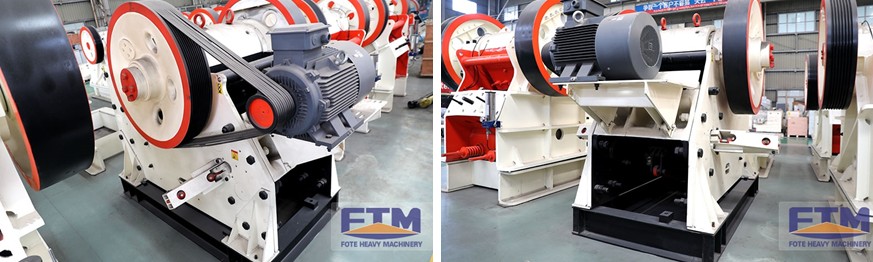

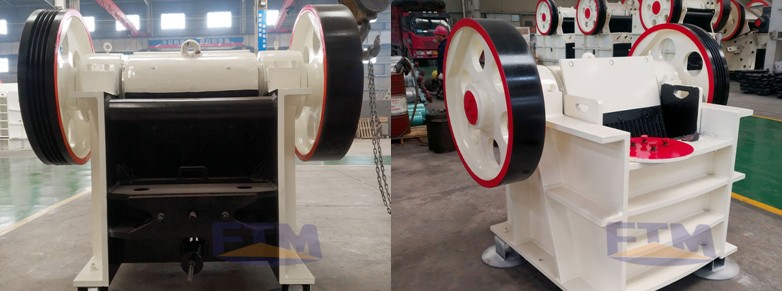

Non-welded Detachable Frame
Optimized Motion Parameters
Wedge Type Outlet Adjustment
Steel Plate Toggle
Integrated Motor Base Structure
Integrated Steel Frame Base
| Model | Max.feeding size (mm) |
Processing capacity (t/h) |
| PE-150×250 | 125 | 1-3 |
| PE-200×300 | 180 | 2-6 |
| PE-200×350 | 180 | 3-10 |
| PE-250×400 | 210 | 5-21 |
| PE-400×600 | 340 | 16-64 |
| PE-500×750 | 425 | 40-110 |
| PE-600×750 | 500 | 80-240 |
| PE-600×900 | 500 | 50-160 |
| PE-750×1060 | 630 | 110-320 |
| PE-900×1200 | 750 | 220-380 |
| PE-1200×1500 | 1020 | 400-800 |
| PE-1500×1800 | 1200 | 500-1000 |
| PEX-150×750 | 120 | 8-25 |
| PEX-250×750 | 210 | 13-35 |
| PEX-250×1000 | 210 | 16-52 |
| PEX-250×1200 | 210 | 20-61 |
| PEX-300×1300 | 250 | 16-105 |
