Max. Feeding Size : ≤ 300 mm
Capacity : 5-2200tph
Material handling: Ore Dolomite Quartz Concrete Lead Feldspar crushing plant
Email: market@sinoftm.com

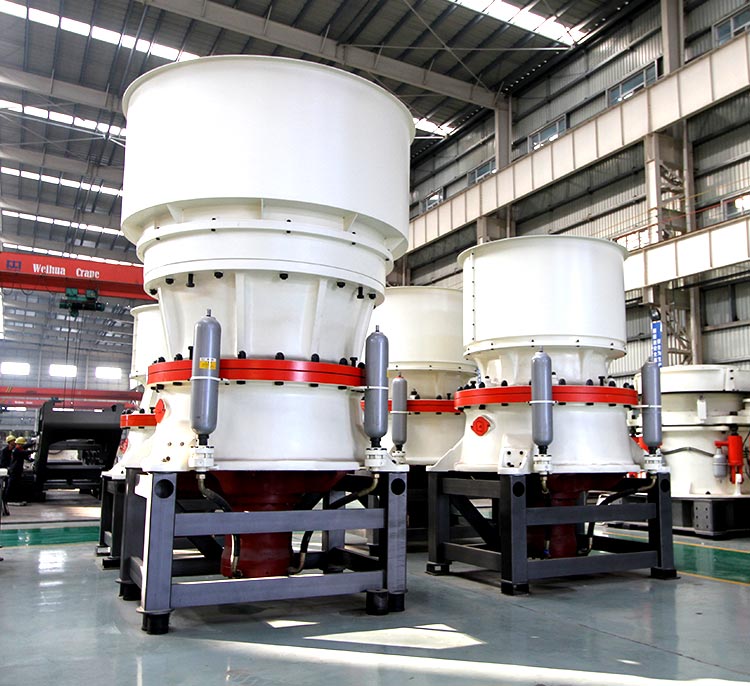

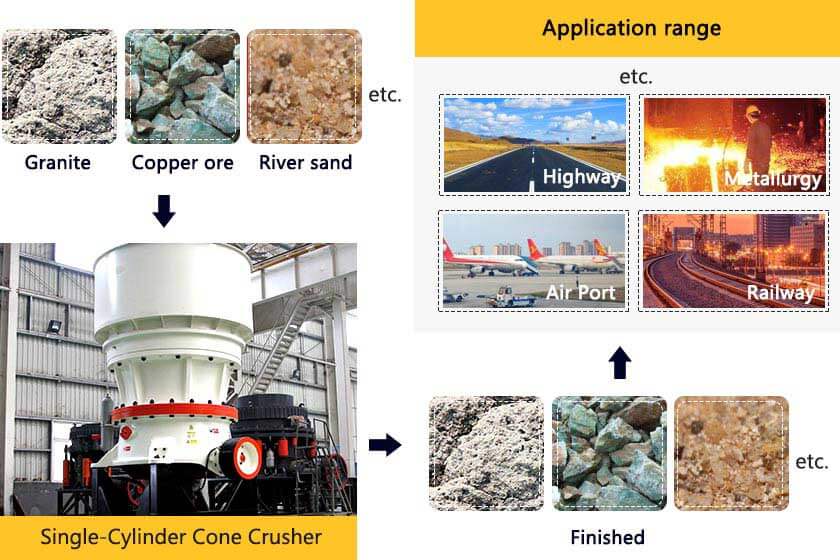

The Single-Cylinder Cone Crusher is widely used for medium, fine and superfine crushing operation of mine, aggregate, metal ores, limestone, granite, basalt, river gravel, construction waste, steel slag, cement raw material, ceramic raw materials.
1.Wide application range; high crushing efficiency, large production capacity.
2.Suitable product particle size
3.High automation degree; easy operation and maintenance; low production cost.
4.Long service life.
5.Simple and compact structure; easy maintenance.
SC-S series of single cylinder hydraulic cone crusher parameters:
| Model | cavities | Maximum Feeding Size（mm） | capacity（t/h） |
| SC(S)100 | C1 | 250 | 85-170 |
| C2 | 200 | 70-130 | |
| SC(S)160 | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC(S)250 | C1 | 450 | 267-605 |
| C2 | 400 | 225-515 | |
| SC(S)315 | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | cavities | Maximum Feeding Size（mm） | capacity（t/h） |
| SC100 | F1 | 150 | 43-135 |
| F2 | 90 | 43-118 | |
| F3 | 50 | 36-71 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 75 | 63-126 | |
| SC250 | F1 | 215 | 116-396 |
| F2 | 140 | 97-328 | |
| F3 | 70 | 95-252 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 175 | 162-552 | |
| F3 | 85 | 195-401 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-915 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
