Max. Feeding Size: 400 mm
Capacity:5-2200tph
Processing Materials: Multi-layer, Multi-screening, Easy to replace the sieve, Low power consumption
Email: market@sinoftm.com

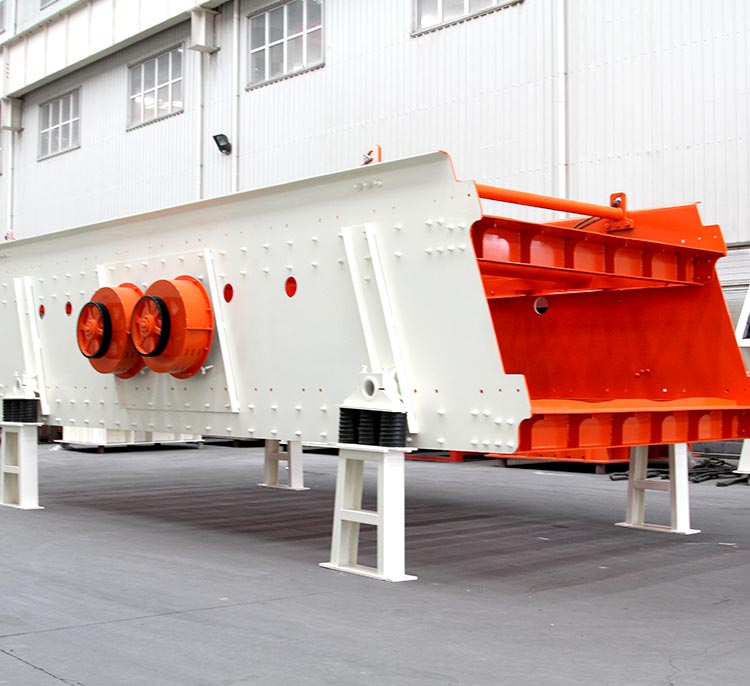

The Vibrating Screen is called circular vibrating screen because of its movement trajectory similar to a circle. The circular vibrating screen is a new type vibrating screen with many layers and high efficiency.
Circular vibrating screen is widely used for product classification in coal, metallurgy, mine, building materials, transportation, energy, chemical and other industries.
1.Multiple screening specifications; reliable structure; large processing capacity, high screening efficiency; high productivity.
2.Low noise; sturdiness and durability; safety in use.
3.Long service life; small impact on the motor
4.Simple structure; easy to change screen surface
5.Screening per ton of materials consumes less electricity.
| Model | Sieve Layer | Sieve Area (㎡) |
Processing capacity (m³/h) |
| 2YK1230 | 2 | 7.2 | 12-78 |
| 3YK1230 | 3 | 10.8 | 13-80 |
| 2YK1237 | 2 | 8.88 | 15-86 |
| 3YK1237 | 3 | 13.32 | 16-90 |
| 2YK1548 | 2 | 14.4 | 22.5-162 |
| 3YK1548 | 3 | 21.6 | 22.5-162 |
| 4YK1548 | 4 | 28.8 | 22.5-162 |
| 2YK1854 | 2 | 19.44 | 32-312 |
| 3YK1854 | 3 | 29.16 | 32-312 |
| 4YK1854 | 4 | 38.88 | 32-336 |
| 2YK2160 | 2 | 25.2 | 50-475 |
| 3YK2160 | 3 | 37.8 | 50-475 |
| 4YK2160 | 4 | 50.4 | 50-497 |
| 2YK2460 | 2 | 28.8 | 65-550 |
| 3YK2460 | 3 | 43.2 | 70-620 |
| 4YK2460 | 4 | 57.6 | 80-680 |
| 2YK2866 | 2 | 31 | 70-650 |
| 3YK2866 | 3 | 47 | 80-700 |
| 4YK2866 | 4 | 62 | 90-750 |
| 2YK2873 | 2 | 39.2 | 70-680 |
| 3YK2873 | 3 | 58.8 | 80-720 |
| 4YK2873 | 4 | 58.8 | 90-950 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
